Cisco Room Bar
Setting a new bar for video meetings.
US $3,795*
Bring big ideas to small spaces
Stunning video, intelligent meeting experiences, and boundless flexibility for your small huddle and meeting rooms.
A video bar crafted for connection
A combination of pleasing aesthetics and human-centric design creates easy and elegant collaboration experiences.
Deploy at scale
Scalable and simple to manage so you can bring great video conferencing to any space—from a single room to an entire campus.
5x
digital zoom
12 MP
wide-lens camera
Thousands of details. One immersive experience.
Your front-row seat at the table.
Intelligent people framing and image cropping allows every participant to have an equitable view in the meeting.
Smart speaker tracking helps ensure the active speaker is always in view.
120° field-of-view captures everyone, including those at the farthest edges of the room.
Transform meeting rooms with immersive experiences.
Enjoy more productive meetings and incredible video conferencing experiences on any meeting platform with a smart video bar which integrated with single and dual displays
Hear everything. Sound your best.
Built-in microphone array
Block out distractions with the noise-cancelling microphone array and AI-based noise removal so everyone is heard loud and clear.
High-performing stereo loudspeakers
Benefit from spatial audio powered by dual stereo speakers just as if everyone was in the same room.
External microphone extension
Connect the Room Bar with an external microphone so even the far-end of the table comes across crisp and clear in extended workspaces.
Join any meeting, anytime.
With the Room Bar, you can experience exceptional video conferencing and content sharing on the meeting platform of your choice.
Webex
Microsoft Teams
Zoom
Google Meet
Welcome to the intelligent workplace.
The Cisco Room Bar is a smart video bar that automatically wakes up as you enter the room, and you can join your meeting in seconds with a tap or a simple voice command. Use AI-powered face recognition to identify meeting participants and ultrasound technology to provide real-time metrics for workspace optimization and in-office wellbeing.
Better collaboration with Cisco.
The goal is to make the experience for those who are remote as good or even better than being in person. We rigged the meeting rooms with Webex Room Kits from Cisco—and we got extremely good feedback on how these devices help include people from different countries and with different languages. We want to expand on that.
[Unlike other multi-vendor solutions], Webex offered a competitively priced, complete solution for schools that met all our criteria. In addition, we were long-time Cisco customers for our telephony and networking equipment, so we trusted the reliability and longevity of Cisco.
Great learning only happens when the social and emotional side of a student's life is in balance. We needed a technology where the whole purpose was to engage students and learners.
1/3
Control your meeting space.
Streamlined deployment
Easy to deploy, scale, and maintain. Get everything you need in a box to take your meeting space to the next level—either in the cloud, on premises, or as a hybrid solution via Webex Edge for Devices.
Unified cloud management
Unify cloud admin, device management, analytics and workspace insights in Control Hub to remove IT headaches and improve resource planning.
Real-time monitoring
Track environmental conditions and occupancy via smart sensors to create a safer and more productive workplace while enhancing employee wellbeing.
Default components

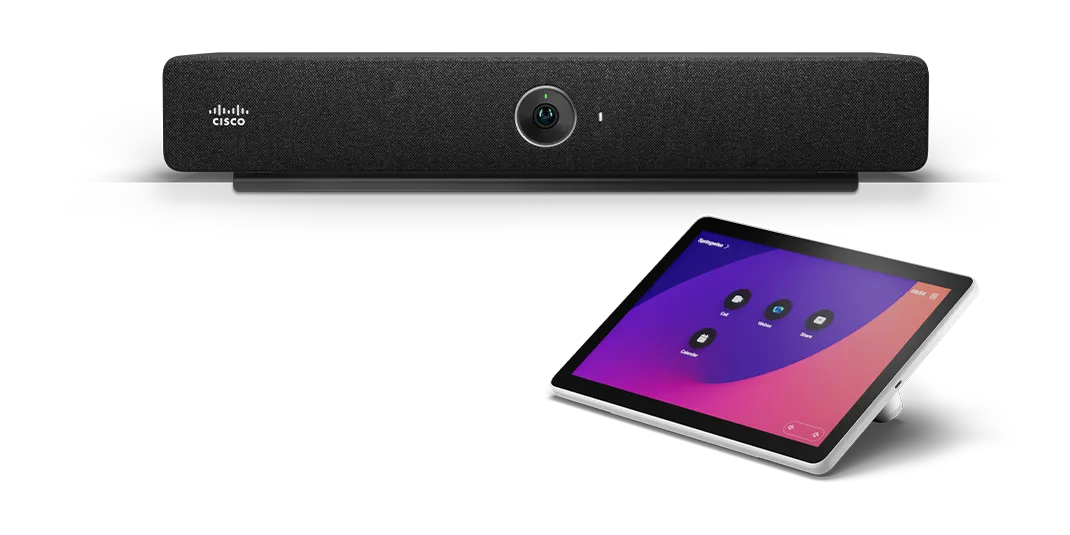

- Video bar unit (First Light or Carbon) with built-in codec, camera, speakers and microphones
- Power adapter
- Network cable
- HDMI cable
- Mounting unit (supporting screen and wall)
- Cisco Room Navigator touch controller
- Ethernet cable
- Privacy cover
Camera overview
- 12MP camera
- 30 frames per second
- 1/2.3’’ CMOS
- 5x digital zoom
- f/2.5 aperture
- 120° horizontal field of view
- 95° vertical field of view
- Auto framing (face detect)
- Speaker tracking
- Frames intelligent people framing
- Auto brightness and white balance
- Fixed focus lens
- Automatic image rotation when mounted upside down
Video features
- Main video resolution up to 1920 x 1080 at 30 fps
- Two HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
- Connectivity with one touchscreen using HDMI out and USB-A*
- Live video resolutions (encode and decode) up to 1920 x 1080 at 30 fps and 60 fps
- One HDMI input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- One USB-C input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- Support for H.263, H.264 video standard
- Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
- Seamless, single-tap meeting to join to Microsoft Teams (via CVI and WebRTC), Zoom (via Zoom Conference Room Connector) and Google (via WeRTC) meetings" > "When configured for RoomOS, the solution supports seamless meeting join to Microsoft Teams (via CVI and WebRTC), Zoom (via SIP) and Google (via WeRTC) meetings
- Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode
Audio features
- Stereo loudspeaker system with 2 high-quality full range drivers, supporting directional audio
- 4-element beamforming microphone array
- 1 extra microphone input for voice pickup extension
- Additional microphone array for speaker tracking
- Acoustic Echo Cancellation (AEC)
- Active Lip Synchronization
- AI-Powered, Adaptive Noise Removal
- Automatic Gain Control (AGC)
- Beamforming Microphones
- De-Reverberation
- Full Duplex
- Full-Band Audio
- Self-Hear
- Spatial Audio
- Ultrasound Technology
Presentations
- Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
- Wireless content sharing via Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
- Wireless content sharing via Miracast (up to 1920 x 1080 at 30 fps) - Not available on Non-radio version
- Apple AirPlay wireless sharing (up to 1920 x 1080 at 60 fps)
- Supports dual screens for video and content
- Supports dual content sources for local meetings
- View whiteboard content and annotations shared from a Cisco Board, Cisco Desk Pro, or the Webex app
- 4K wireless content sharing (up to 3840 x 2160 at 15 fps)
- 4K wired (USB-C and HDMI) passthrough content sharing
Room intelligence
- Control with Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
- Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
- Automatic screen/display integration through HDMI CEC
- Supports Wi-Fi 5 and Bluetooth® **
- Control peripherals such as lights and blinds through the Cisco Room Navigator
- Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
- System “wakes up” when someone walks into the room, and recognizes them through their mobile device
- Webex Assistant enables conference controls via voice commands and other touchless workflows
- Customizations via macros for digital signage and other workspace applications
- Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant
Security features
- Secure management using HTTPS and SSH protocols
- End-to-end encryption for calls and meetings on Webex
- Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
- WPA3 ™ and WPA3-Enterprise with CCMP128 Wi-Fi® security
- Password protection to access administration available on Room Navigator controller
- Network settings protection
- Privacy cover
Interfaces
- 1x 3.5mm Jack analog audio input
- 1x HDMI video input
- 1x USB-C input
- 2x HDMI video outputs
- 1 USB-A input
- 1x Ethernet (RJ-45) 10/100/1000 for LAN
- 1x Ethernet (PoE) (RJ-45) for Cisco Room Navigator direct pairing" > 1x Ethernet (PoE) (RJ-45) for Room Navigator touch controller direct pairing
- 1 microUSB port
- Power adapter port
- Factory reset pinhole
Dimensions
- Width: 21 in. (53.4 cm)
- Height: 3.2 in. (8.2 cm)
- Depth: 2.5 in. (6.4 cm)
- Weight: 4 lb. (1.5 kg)
Device management
- For cloud deployments, the device is managed in the Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
- For on-premises deployments, the following management and call control options apply:
- Native registration with Cisco Unified Communications Manager (Unified CM) - requires Unified CM version 12.5(1) or later with device pack for Room Bar
- Native registration with Cisco Expressway
- TelePresence Management System 15.13.4 or later supports Cisco Room Bar
- Webex Service
- Third-party H.323 gatekeepers and standards-based SIP proxies
- In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Cisco devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.
* Coming soon
** The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.
Designed for a
sustainable future.
We’ve designed the video bar endpoint to support the circular economy. Goodbye to box-in-the-box packaging, plastic containers, and redundant components in the box. Cisco Room Bar comes with post-consumer recycled (PCR) plastic on cosmetic parts and recycled fibre-based trays, and a consolidated mounting unit to reduce the environmental impact of the solution.
Compare Cisco video bars and room kits.
Room Bar
Room Bar
|
||
|---|---|---|
|
Small huddle and meeting rooms Workspace |
Small huddle and meeting rooms Workspace |
Medium meeting and training rooms Workspace |
|
No, BYOD peripheral. Codec |
Yes, with NVIDIA chipset Codec |
Yes, with NVIDIA chipset Codec |
|
RoomOS Platform Support |
RoomOS for native Webex meetings and third-party video interop; Microsoft Teams Rooms Platform Support |
RoomOS for native Webex meetings and third-party video interop; Microsoft Teams Rooms (coming soon) Platform Support |
|
Yes, USB-A and HDMI for passthrough and screen extension USB passthrough |
Yes, single USB-C for passthrough and screen sharing USB passthrough |
Yes, single USB-C for passthrough and screen sharing USB passthrough |
|
120° horizontal field of view Camera field of view |
120° horizontal field of view Camera field of view |
112° and 70° horizontal field of view Camera field of view |
|
5x zoom Zoom |
5x zoom Zoom |
5x zoom Zoom |
|
Yes Frames people cropping |
Yes Frames people cropping |
Yes Frames people cropping |
|
Yes, internal microphones Microphones |
Yes, 4-point microphone array, audio port for microphone extension Microphones |
16-element microphone array for voice pickup and speaker tracking; microphone extension over IP, USB and analog Microphones |
|
Yes, AI noise removal Noise suppression |
Yes, AI noise removal Noise suppression |
Yes, AI noise removal Noise suppression |
|
No Audio input |
Yes, 1x 3.5mm Jack Audio input |
2x 3.5mm Jack, 2x USB-A, up to 3x Table Microphone Pro units or third-party microphones via PoE Audio input |
|
Mono speakers Loud speakers |
Dual stereo speakers supporting spatial audio Loud speakers |
Three-channel, stereo loudspeaker system supporting spatial audio Loud speakers |
|
Connects with one external screen Screen support |
Connects with dual screens. Touchscreen support* Screen support |
Connects with triple screens. Touchscreen support* Screen support |
|
Yes Wireless content sharing |
Yes, via Webex, Miracast and Apple AirPlay Wireless content sharing |
Yes, via Webex, Miracast and Apple AirPlay Wireless content sharing |
|
Separate mounting unit for screen and wall Mounting |
Single mounting for screen and wall Mounting |
Single mounting for screen and wall Mounting |
|
No, only basic remote control Touch panel |
Yes, comes with Room Navigator (table-stand or wall-mount) Touch panel |
Yes, comes with the table-stand Cisco Room Navigator Touch panel |
|
Control Hub when cloud-registered Management |
Control Hub when cloud-registered Management |
Control Hub when cloud-registered Management |
|
Depth: 7.7cm; Width: 50cm; Weight:2kg Dimensions |
Depth: 6.5cm; Width: 53.4cm; Weight: 1.5kg Dimensions |
Width: 37.8 in. (96 cm), Height: 4.3 in. (11 cm), Depth: 3.5 in. (9 cm), Weight: 9.86 lb. (4.47 kg) Dimensions |
New Innovation
Workspace Designer
Your one-stop interactive room configurator and design guide is here.
Dive deeper.
Learn more about Cisco devices and how to equip your hybrid teams for success.
* Cisco Suggested Resale Price (CSRP) shown are a Target End Customer Price and are dependent on the specific offer model/configuration. CSRPs are provided for guidance and planning purposes only and may vary by country/region. This is not a binding offer from Cisco. Price does not include optional hardware accessories or Cisco Supported Services.
