Small Room

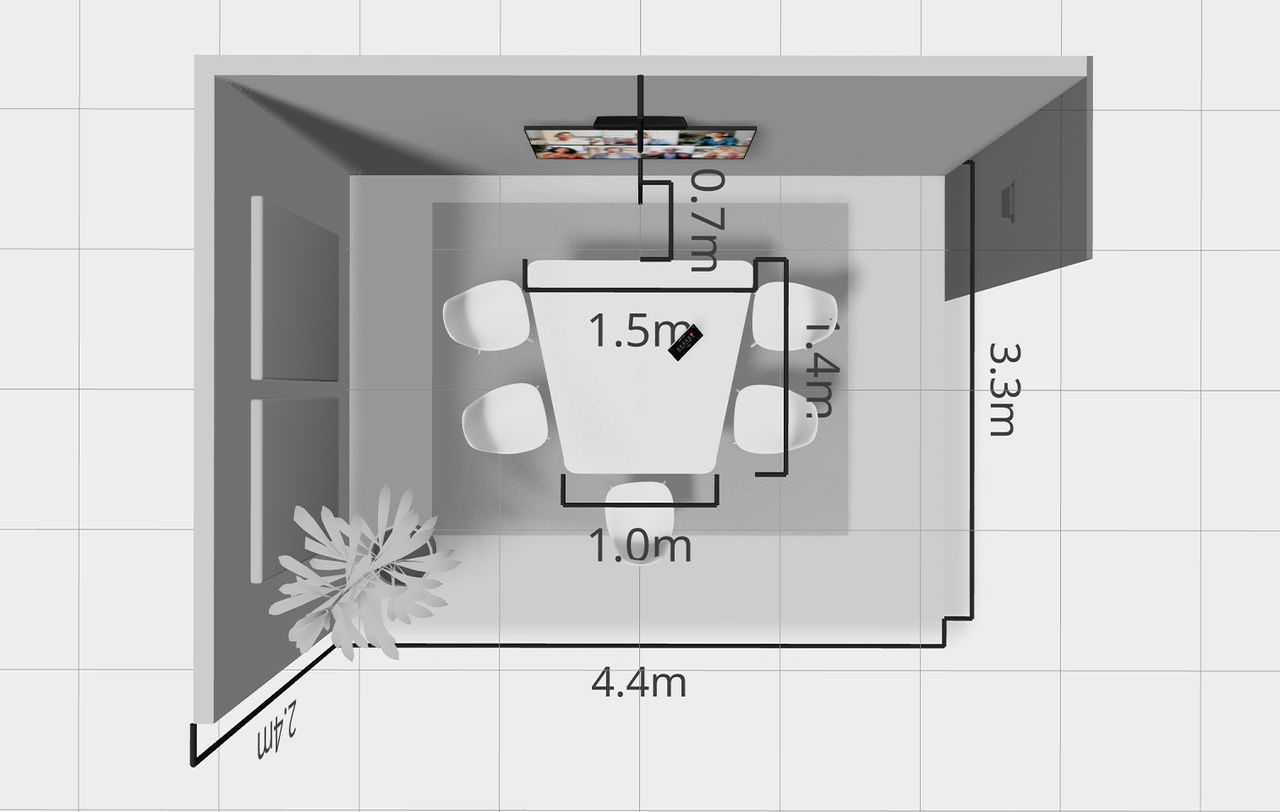

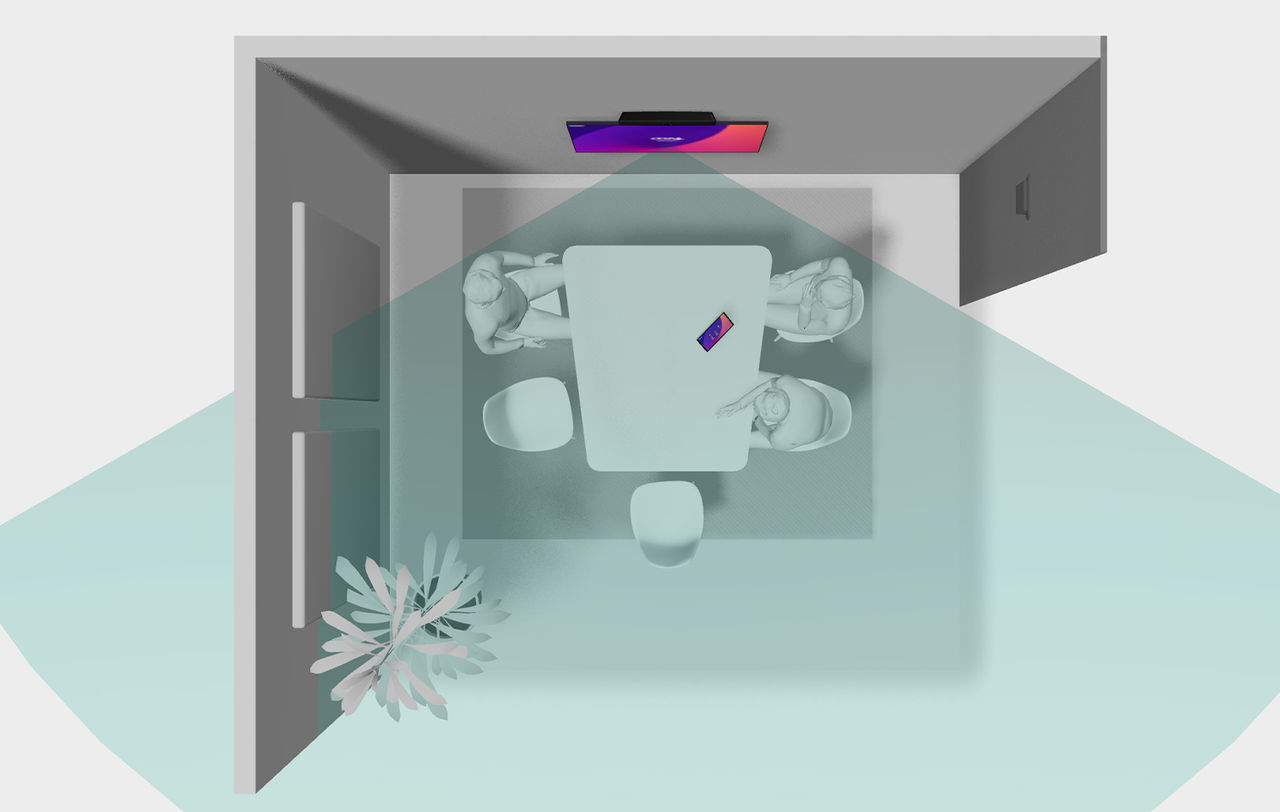

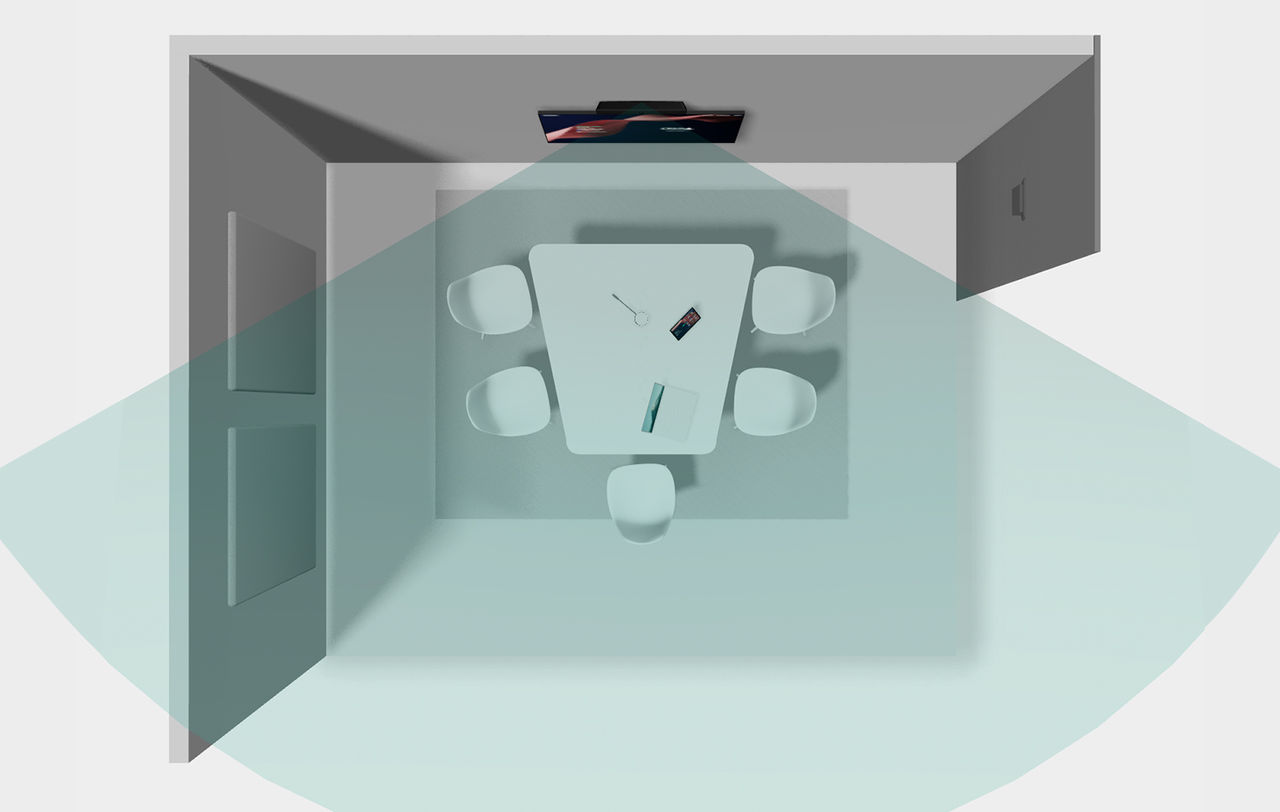

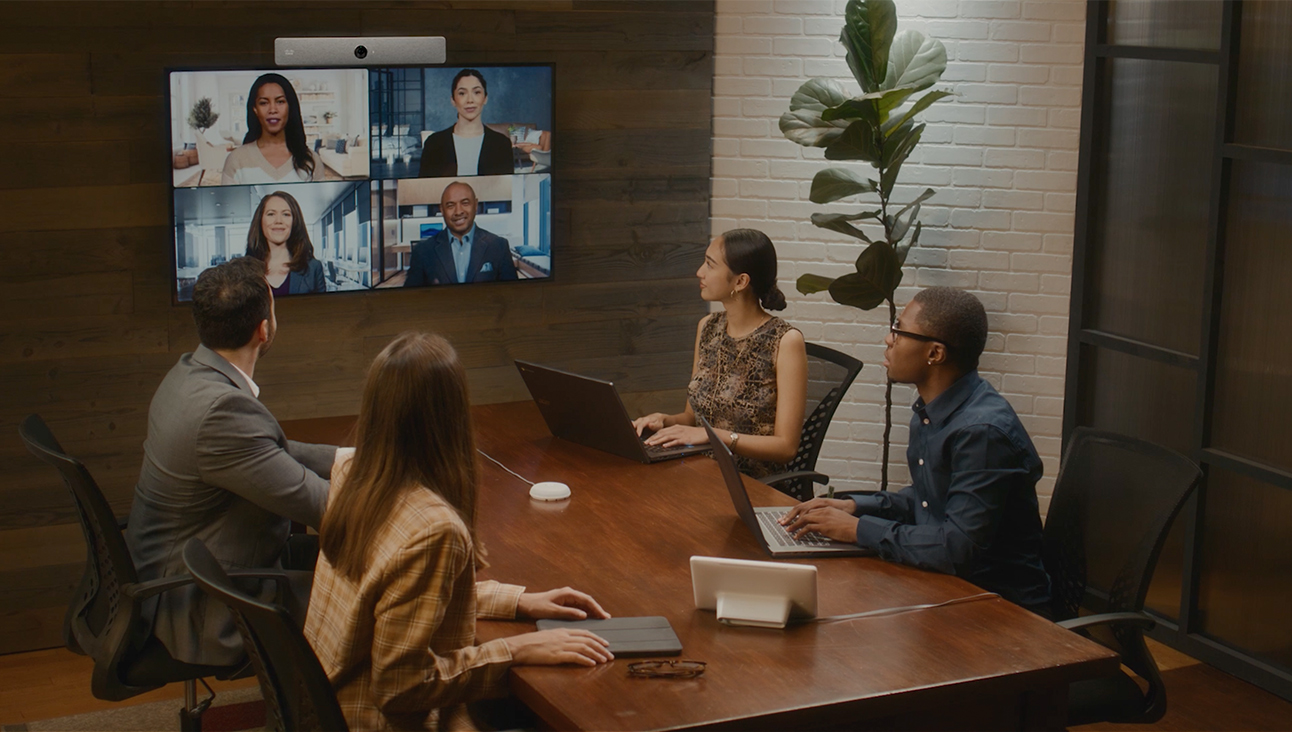

When deploying the Room Bar, consider the position of the video bar, screen(s), and the distance between people and the device. To get the best viewing angle, we recommend placing the video bar above the display, but not too high to avoid a top-down viewing angle effect.

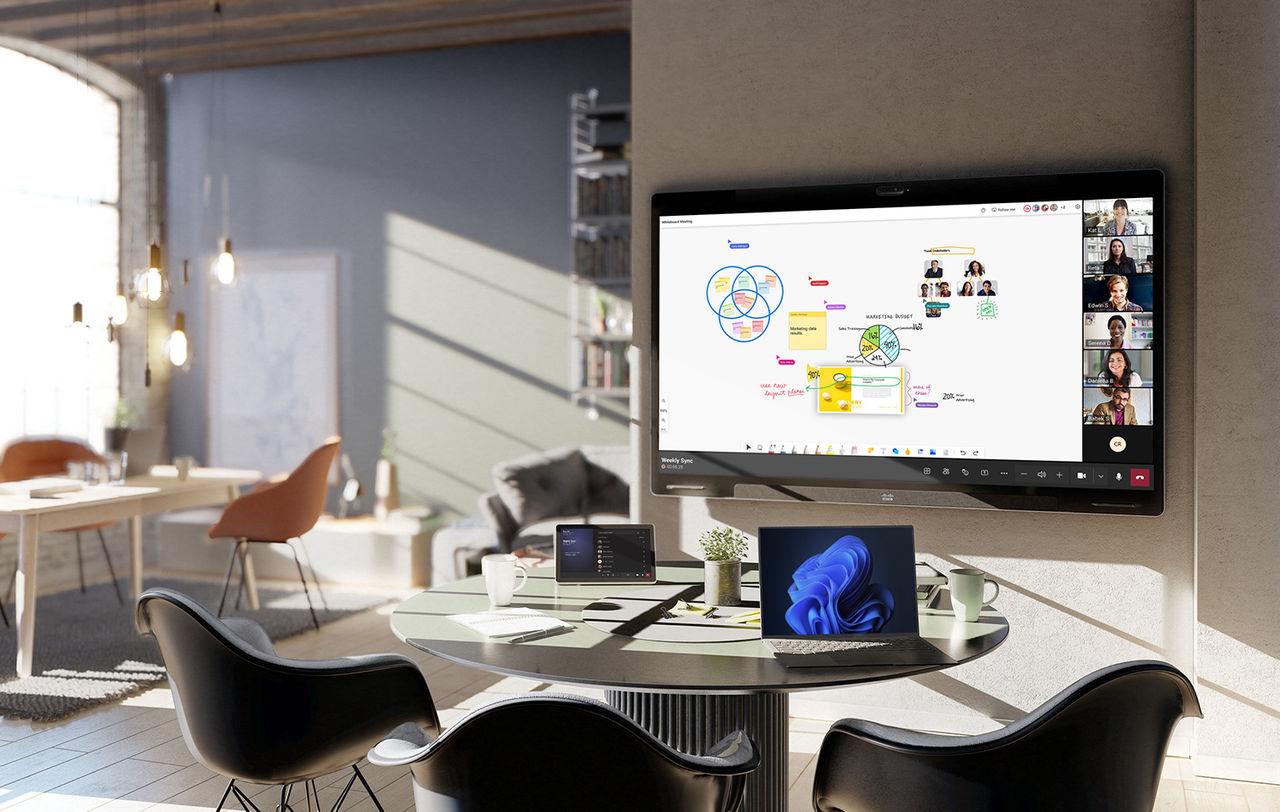

The video bar can be placed below the screen when using a larger display. when installing it under the screen, make sure the screen isn’t mounted too high so that proper ergonomics can be maintained for in-room participants. When the video bar is mounted beneath the screen, you can apply modesty panels on the table.

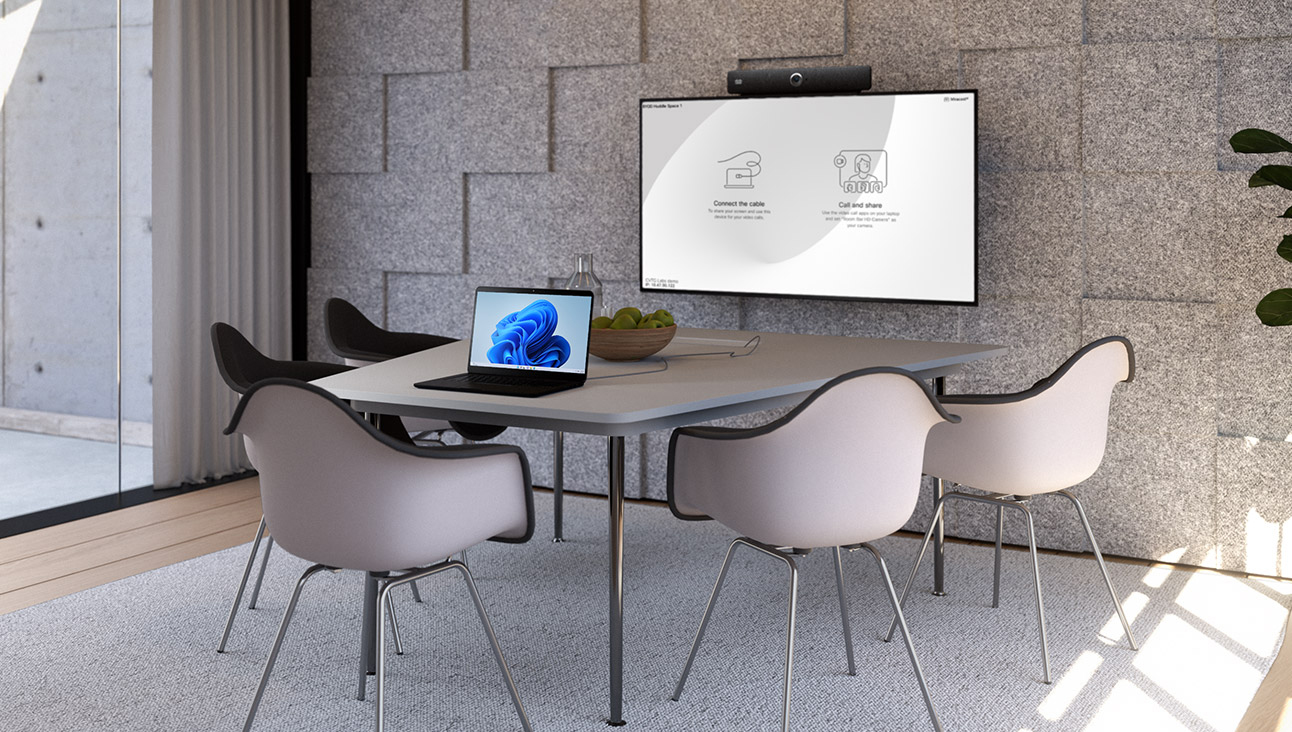

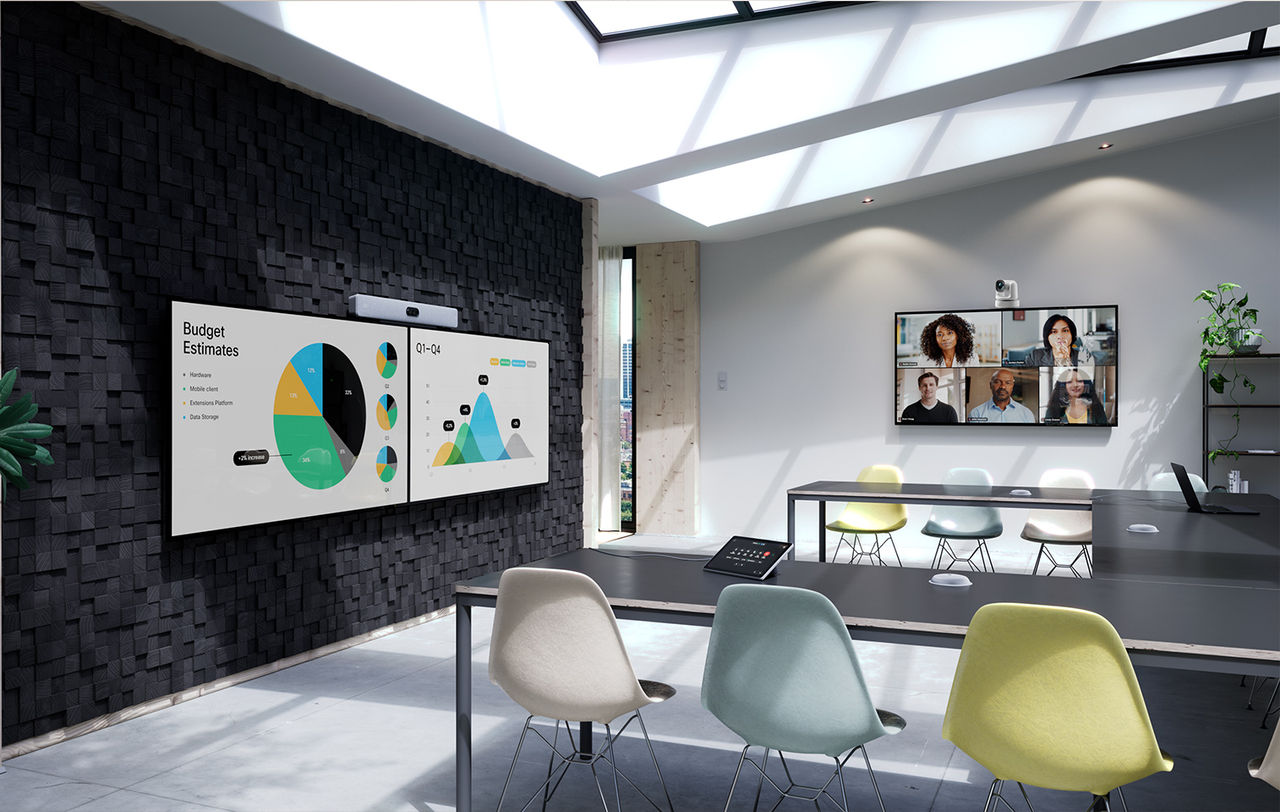

Enhance your audio experience with an acoustically absorbing suspended ceiling panel along with acoustical wall panels on adjoining walls. For rooms with parallel glass walls, use heavy curtains or special transparent acoustic panels. To dampen the sound of footsteps and moving chairs, we recommend carpeting on the floor.

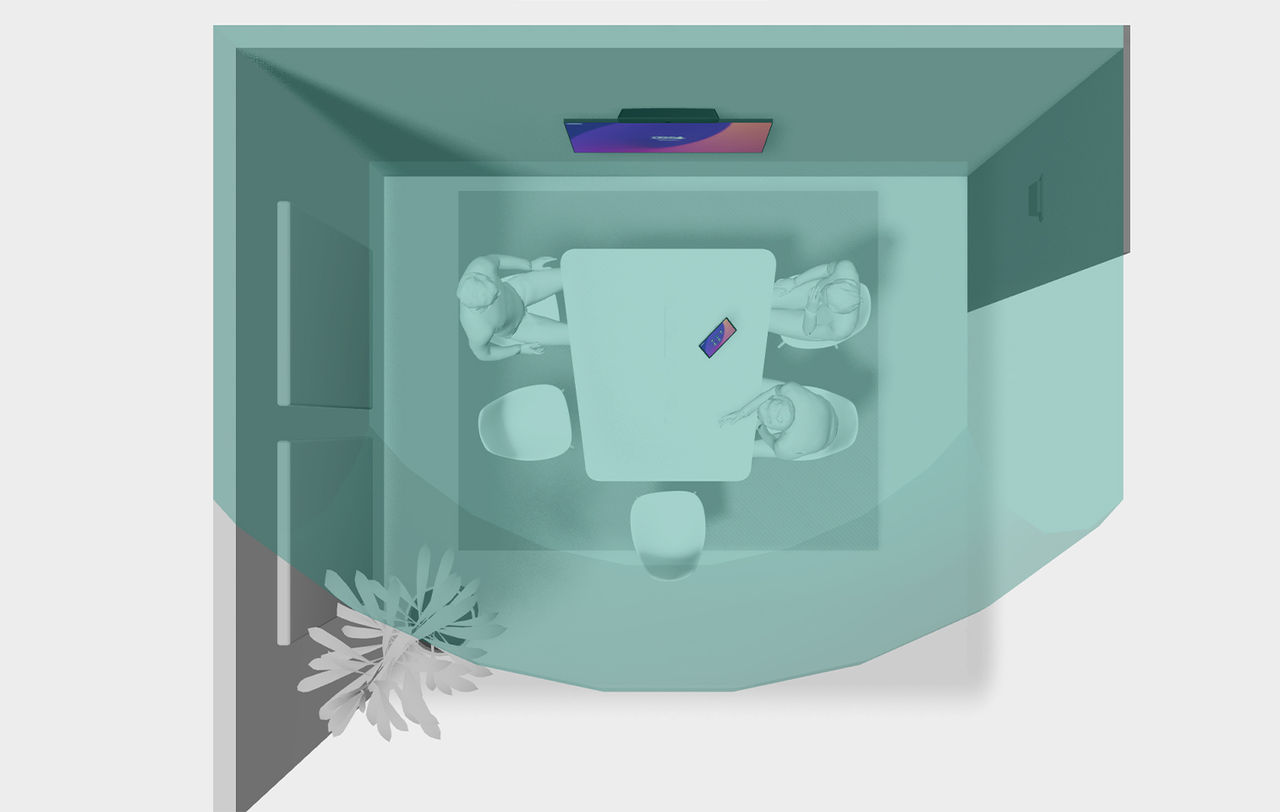

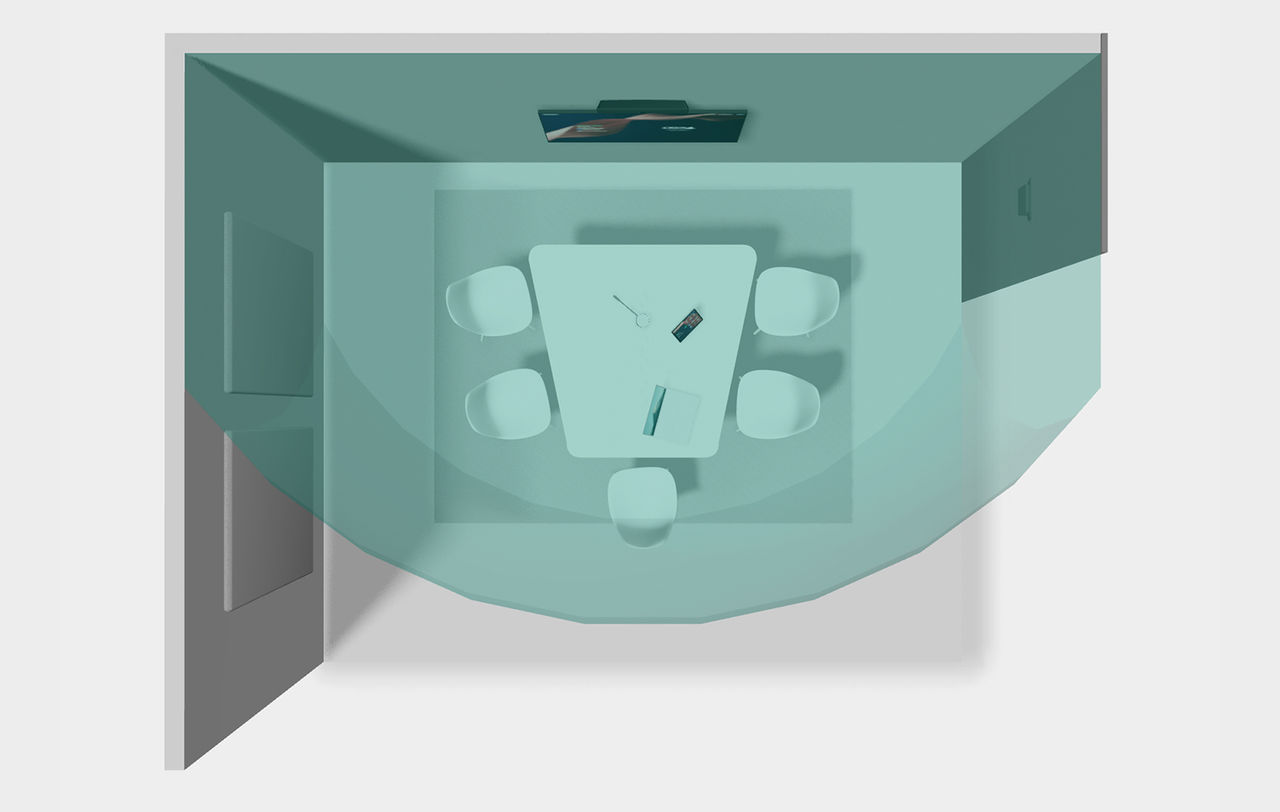

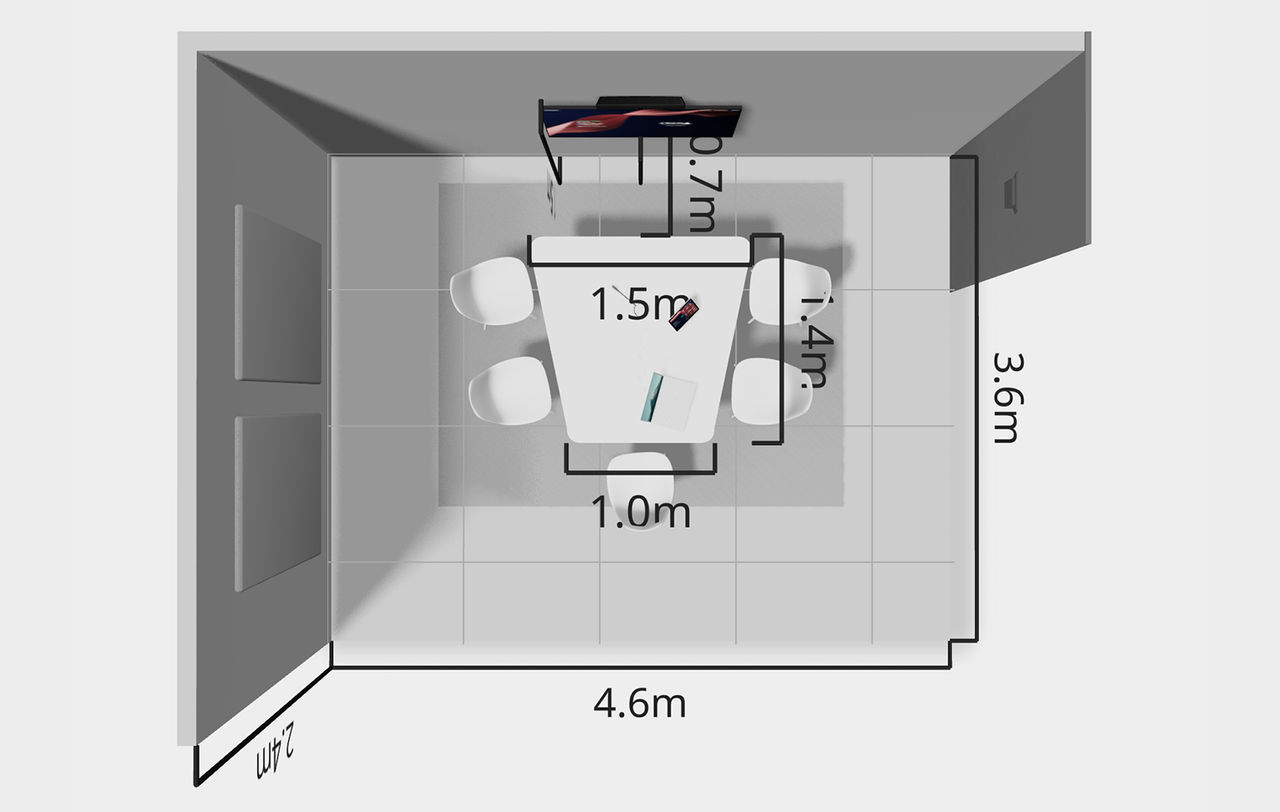

The video system features an internal microphone array and is optimized for use in small spaces with people seated within 3 meters (10 ft) from the device. If participants are seated further or the room features suboptimal acoustic conditions, we recommend adding a Cisco table or ceiling microphone to ensure the best audio experience.

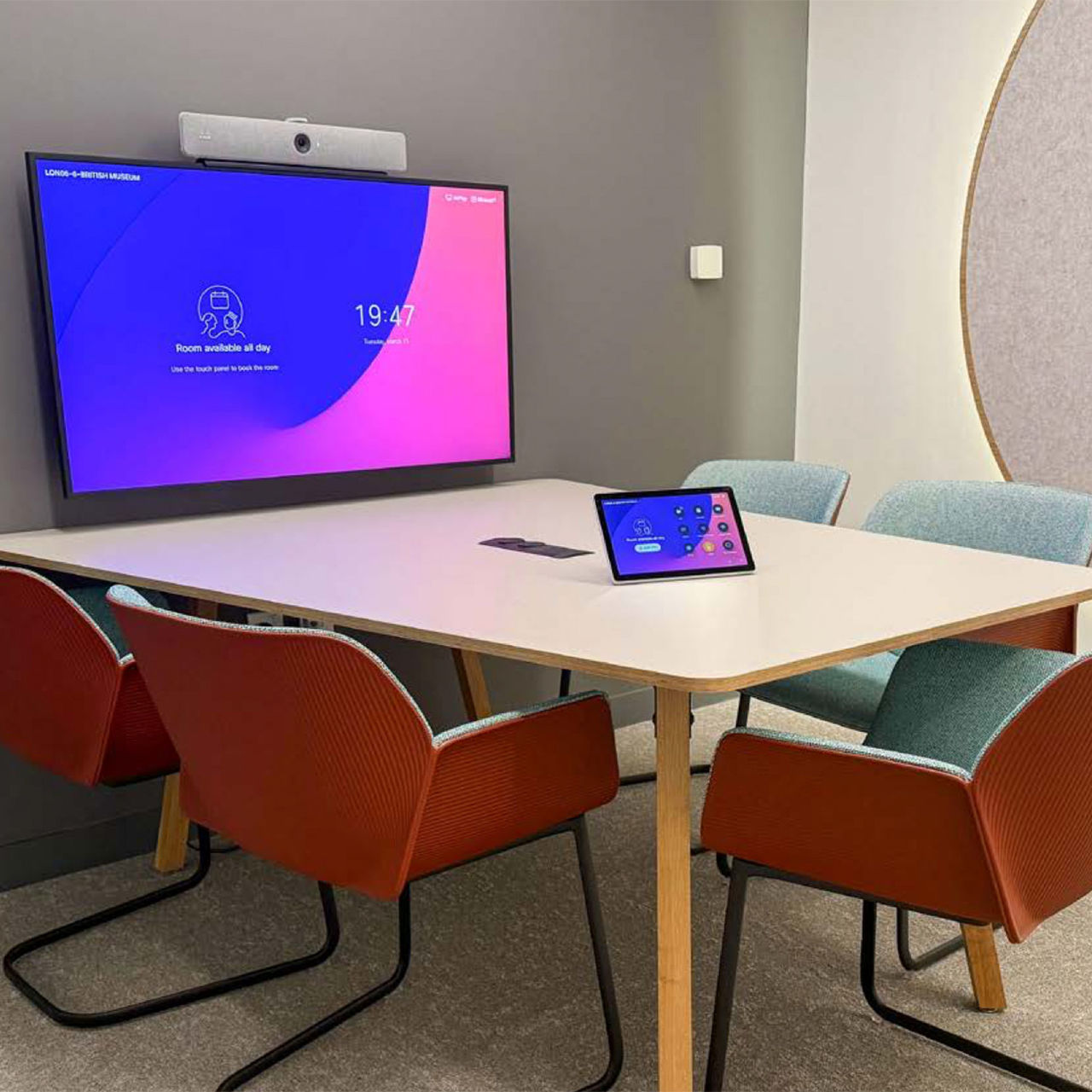

You can mount the video bar to the screen or on the wall with the mounting unit included in the package. To ensure a clean setup without visible cabling, you should elevate power and data outlets. If wall mounting isn’t an option, you can install a free-standing setup or mount it on an AV credenza, available from Cisco partners.

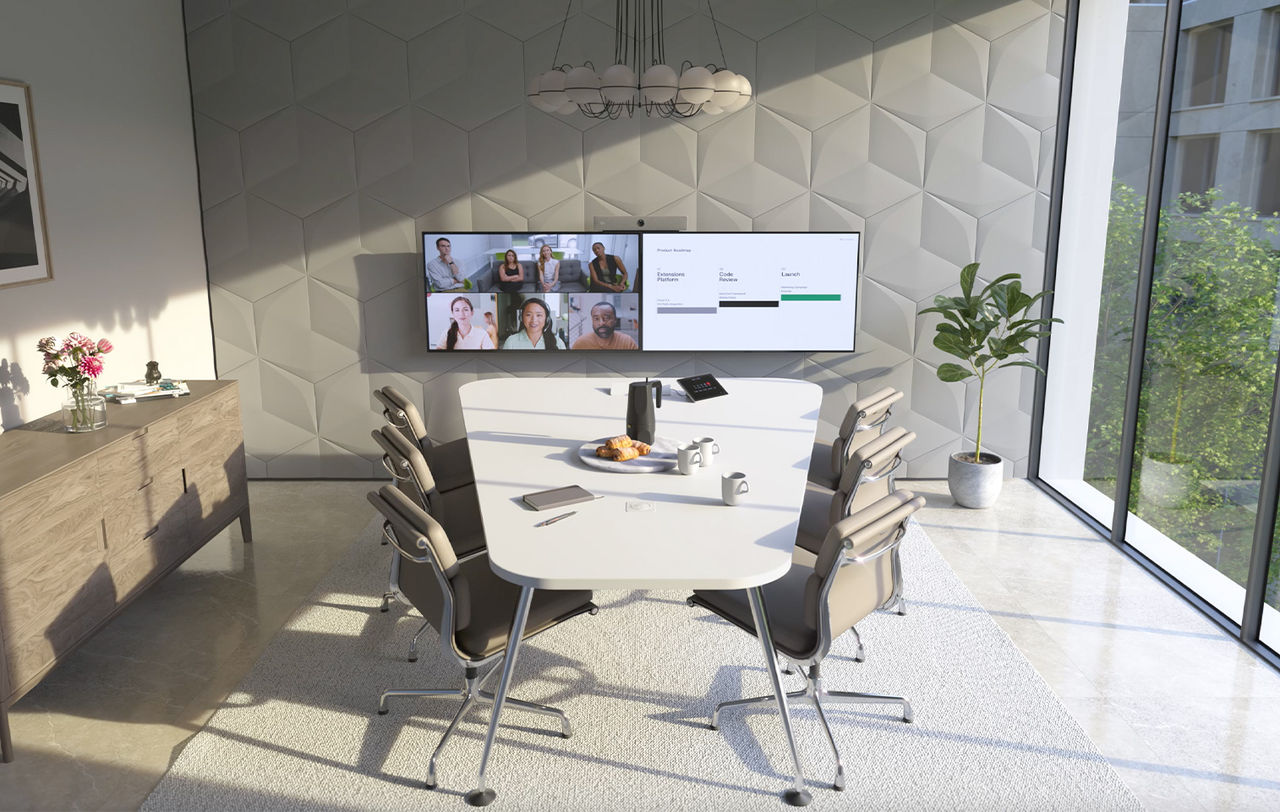

High-quality furniture is essential for a successful meeting experience. We recommend a slightly slanted, tapered table shape with the widest edge nearest the screen, tapering toward the far end to ensure that everyone is visible on the camera and has a clear line of sight towards the screens.

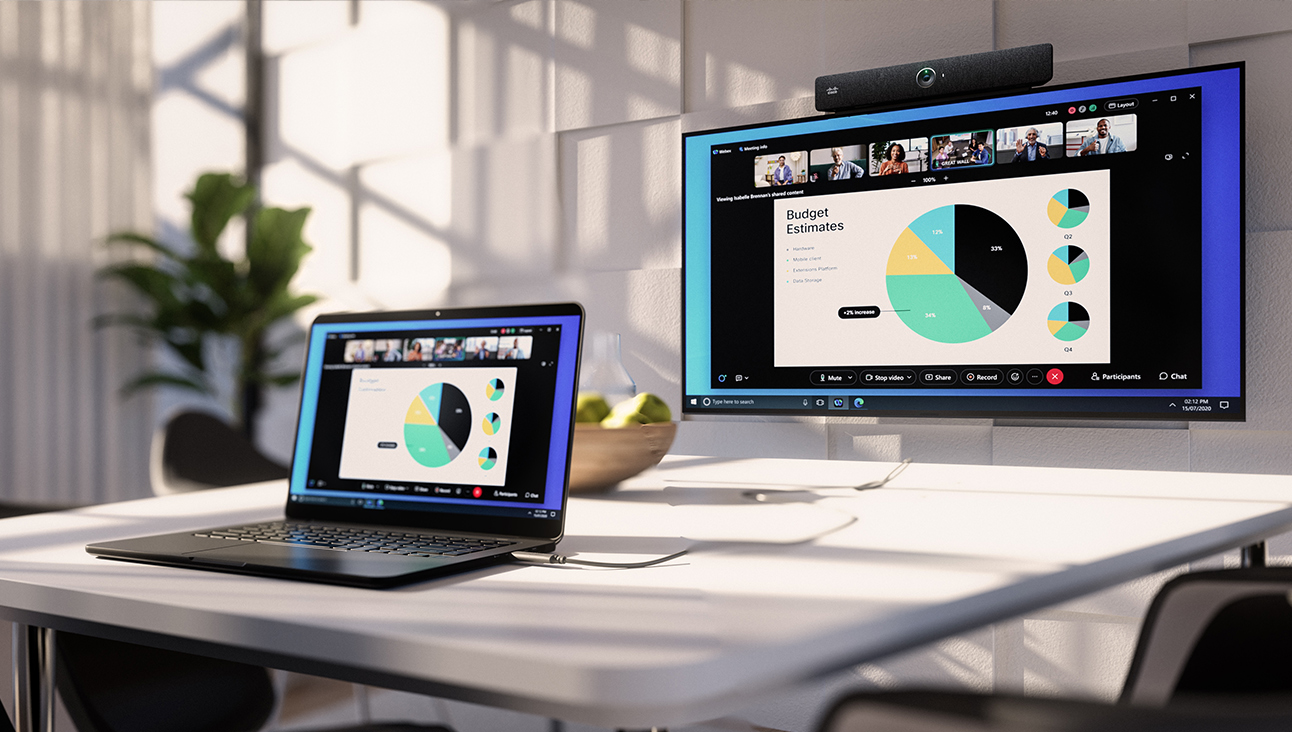

To ensure meeting participants look their best, they should be lit from the front (fill light), top (key light), and back (backlight). For optimal visibility, eye contact, subject highlighting, and scene depth, use glare-free luminaries with a beam angle of 90°or wider to evenly distribute light throughout the room.

We recommend using a light intensity of 400-500 lux, measured vertically, to clearly capture facial features, and 700-900 lux for optimal brightness on horizontal work surfaces. Room lighting should be even, and a light color temperature of 4000 K is generally suitable for most scenarios. For accurate color representation of skin tones and interiors, use a color rendering index (CRI) of 85 or better.
